12k 2-post car and truck lift
Two-Post Automotive Lift

12K Two-Post

Two-Post Automotive Lift

The 12k 2-Post lift represents the pinnacle of lifting technology, offering a multitude of exceptional features that include symmetrical lifting capabilities, extended-reaching front and rear arms, adjustable insert screw lifting pads and a cushioned overhead shut-off bar. With the potential for augmenting functionality through a range of optional accessories, the 12k 2-Post lift presents the opportunity to effectively boost shop productivity even further.

adjustable height extension

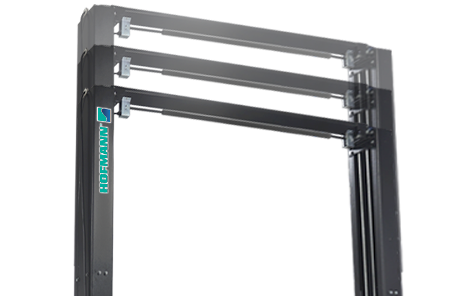

Adjustable Height Extension
Facilitating the efficient handling of higher-profile vehicles, the adjustable column height maximizes workspace under vehicles for increased service capability and technician safety.
adjustable urethane screw pads
Adjustable Urethane Screw Pads
Heavy-duty polyurethane lifting pads with adjustable urethane screw facilitate quick and easy vehicle setup and include a telescoping feature that enables convenient access to factory-recommended lift points.
ali certified
ALI Certified
Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.
increased capacity for larger vehicles 12k 2-post

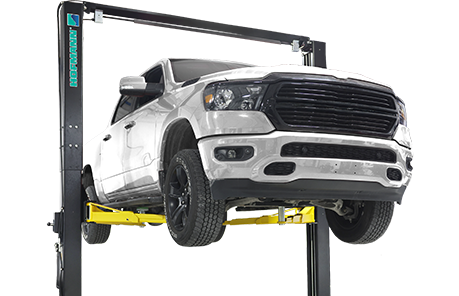

Increased Capacity for Larger Vehicles
Providing up to two additional feet of workspace, this unit enables technicians to handle taller vehicles, including large trucks, SUVs, and cargo vans.
two-stage front & rear arms

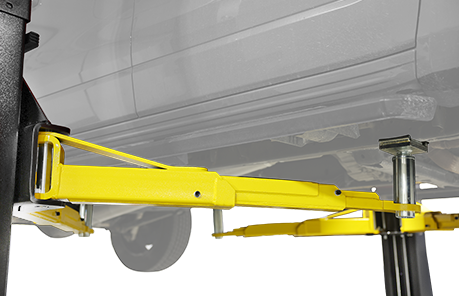

Two-Stage Front & Rear Arms
Heavy-duty two-stage front and rear arms facilitate easy symmetric lifting across a wide range of vehicles.
14'x24' | 427x732cm
Minimum Recommended Bay Size WxL Standard
190"-199" | 483-505cm
Overall Height Extended
166"-175" | 421-445cm
Overall Height Standard
140" | 356cm
Overall Width
208-230V 60Hz 1Ph 30A 2HP / 1.5kW
Power Supply
90-120 PSI | 6-8 BAR
Air Supply Required
Symmetric
Configuration
12,000 lbs. | 5,443 kg
Lifting Capacity
61 seconds
Lifting Time
78" | 198cm
Max. Lifting Height
14'x24' | 427x732cm
Minimum Recommended Bay Size WxL Extended


Part Number

EELR738A
