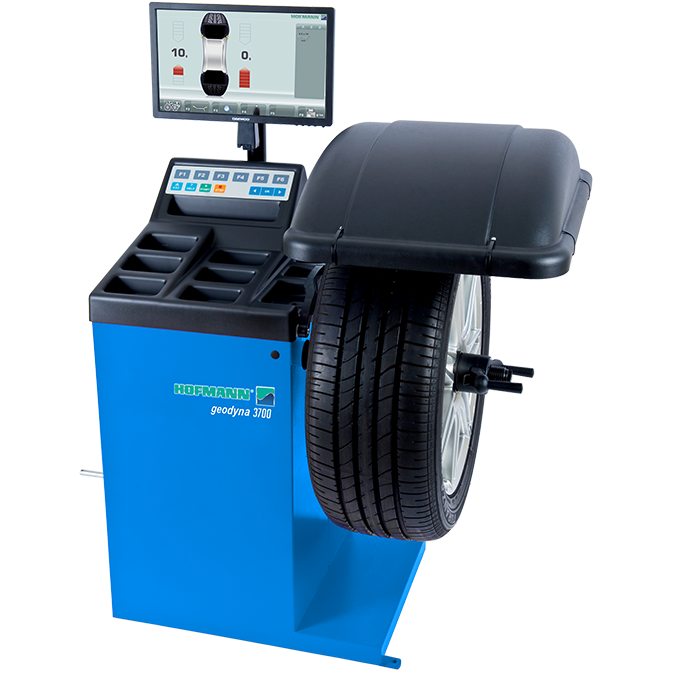

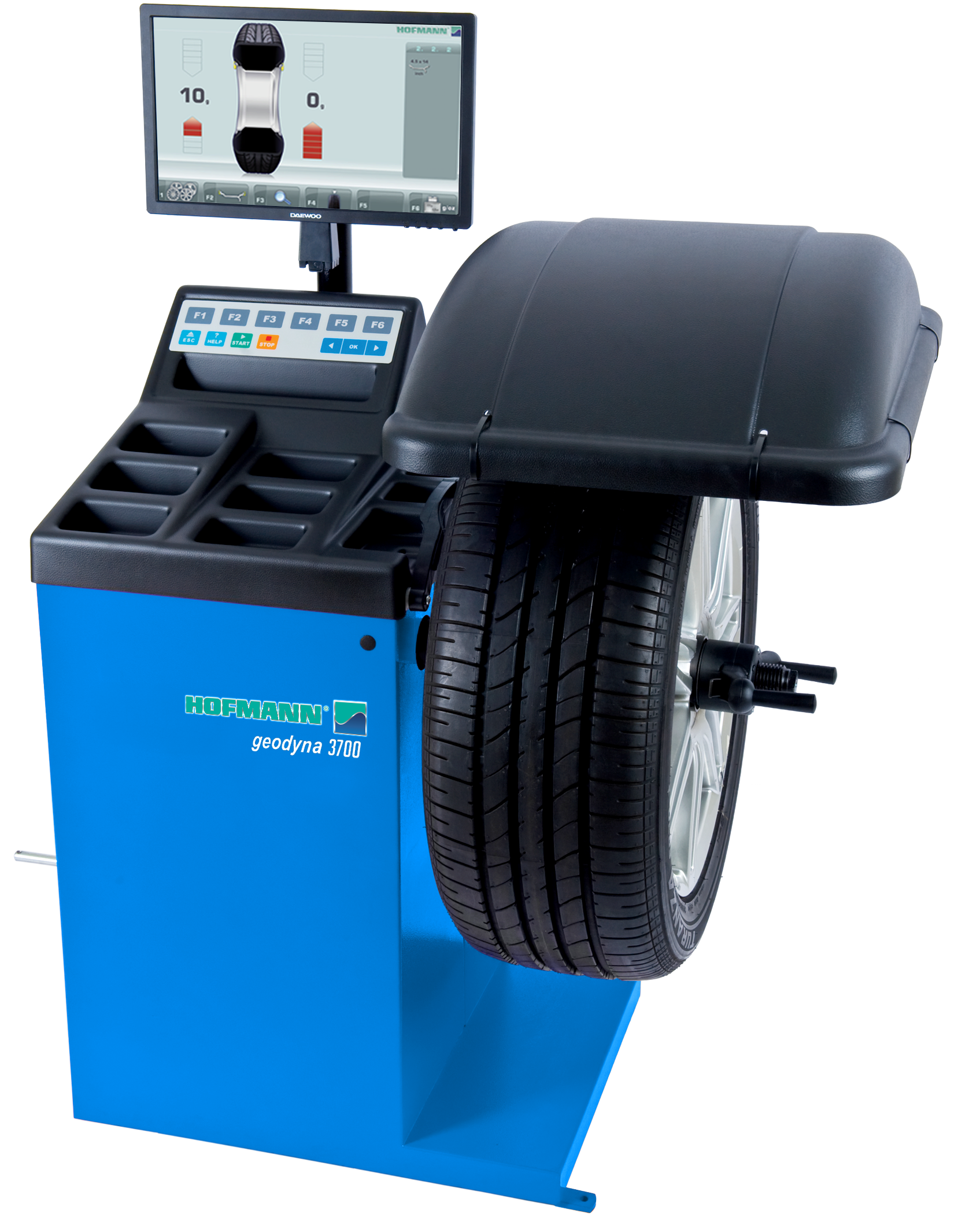

geodyna® 3700

Wheel Balancer with LCD Monitor

The geodyna® 3700 Wheel Balancer from Hofmann® combines technology with a compact design, delivering service. Built to meet the demands of today’s vehicles, this balancer ensures accurate results with minimal effort, enhancing shop productivity.

The geodyna® 3700 offers an intuitive interface that simplifies operation for technicians of all skill levels. Semi-automatic parameter entry and easyALU™ mode streamline setup, while the Split Weight Mode allows for discreet weight placement behind spokes, preserving wheel aesthetics. Supporting static, dynamic, and motorcycle balancing modes, this balancer handles a wide range of wheel types with ease.

With integrated weight storage and a user-centric design, the geodyna® 3700 empowers shops to deliver accurate results and maximize profitability.

Features

Tech Specs

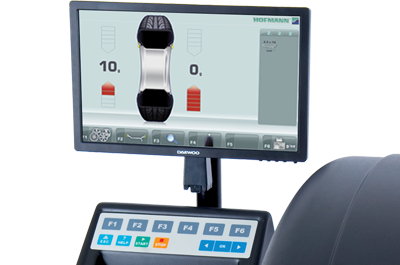

Monitor and Integrated Touchpad

This system features a raised monitor and integrated touchpad, providing convenient control, optimizing workflow and simplifying the balancing process.

QUICKNUT WHEEL CLAMP

This user-friendly manual clamping device ensures secure attachment of the wheel to the balancer shaft. Designed for ease of use, it facilitates efficient and reliable operations, guaranteeing a stable wheel mounting process.

QUICKBAL™

Engineered for optimal performance, this feature intelligently adjusts the number of revolutions according to each wheel's specifications. Operating at maximum speed, it effectively reduces cycle time, delivering swift and efficient results.

SEMI-AUTOMATIC DATA ENTRY

Equipped with a user-friendly gauge arm, this system facilitates data entry with easyALU™ assisted rim measurement technology. Technicians simply touch the rim with the gauge arm, and the system automatically enters the rim dimensions and selects the appropriate weight-balancing mode.

SPLIT WEIGHT MODE

This feature ensures accurate balancing and discreet weight concealment behind spokes, maintaining the wheel’s aesthetic appeal and visual presentation.

12"-22" | 305-560mm

Manual Rim Diameter Range

3"-16" | 76-407mm

Manual Rim Width Range

34" | 863mm

Max. Wheel Diameter

143 lb. | 65kg

Max. Wheel Weight

230/240V, 1.5A, 1ph, 50/60Hz

Power Supply

63" x 39" x 37" | 1,633 x 1,111 x 1,036mm

Dimensions HxWxL
