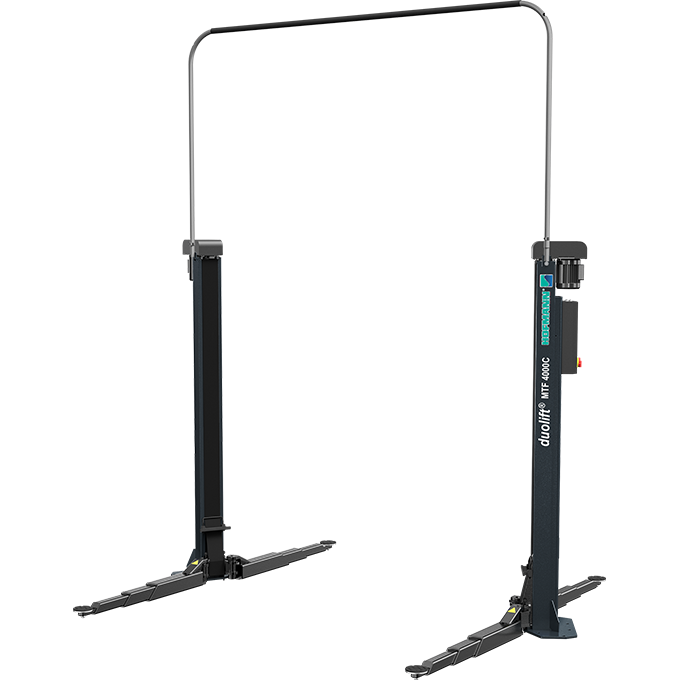

duolift® MTF 4000C

The overhead cable bridge houses the power supply cable, motor synchronisation cable, and thermo switch cable, eliminating cable hazards for a safer working environment with adjustable height to suit workshop requirements and vehicle types.

The duolift® MTF C Series carriage has an integrated oil reservoir with six maintenance-free rollers that guide the carriage inside the columns and do not wear out like plastic sliding blocks.

The MTF 4000C features four long 3-stage arms, offering various lifting possibilities.

The columns are set at a 30-degree angle to improve the space for door opening. The lifting arms attach to the carriage with a heavy-duty reinforced pin housing , allowing bidirectional arm swing.

Compact, roll-formed steel profile colmns with a rubber protective band to shield against sparks from welding or repair operations on a vehicle on the lift.

The duolift® MTF C Series features a reverse switch that can be locked against misuse by a standard padlock. Additionally, CE Stop, an audible safety signal, halts lowering at 200mm, protecting operators without the need for bulky foot guards, which are often damaged and can increase the risk of injury.
